I made a few small improvements and fixed defects on the Cable Size Calculator.

Improvements

• I added a confirmation window for the reset button.
• I added a warning for the user to raise the ambient temperature for cables installed in ceilings.
• I added step-by-step calculations for the phase and earth fault at load.
• I improved the step-by-step calculations for maximum earth loop distance.
• I added new content to explain maximum loop distance calculations.
• I added new content to explain the MCB curve types.

Defects

• Parallel cables are now allowed for cables ≥ 4 mm² only –AS/NZS 3000, section 3.4.3.
• I added reactance correction factors for "Spaced" single-core cables –AS/NZS 3008, Tables 30 and 31, Note 1.
• I changed single-phase reactance values from "Flat" to "Trefoil" –AS/NZS 3008, Tables 30 and 31. The "Flat" values were more conservative".
• Cables installed horizontally on a wall with a vertical spacing of 6D (no derating) are now limited to 3 cables –AS/NZS 3000, Figure 1, Note 5.

Examples of the improvements

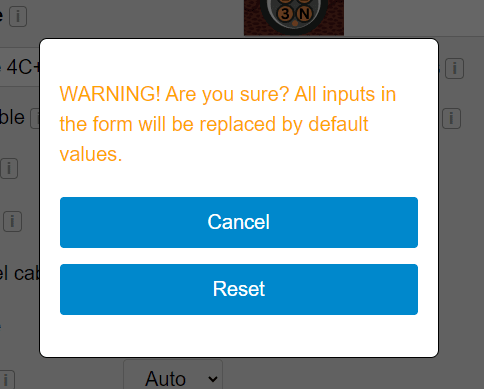

Reset confirmation window

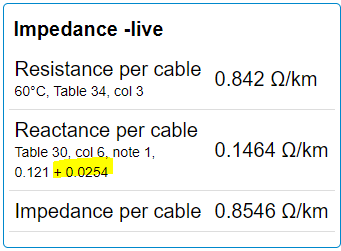

Impedance correction factors for "Spaced" single core cables.

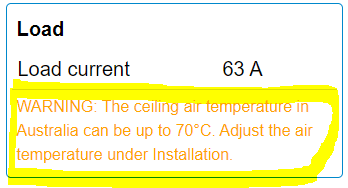

Warning to raise ambient temperature for cables installed in ceilings.

New step-by-step calculations for phase and earth fault at load

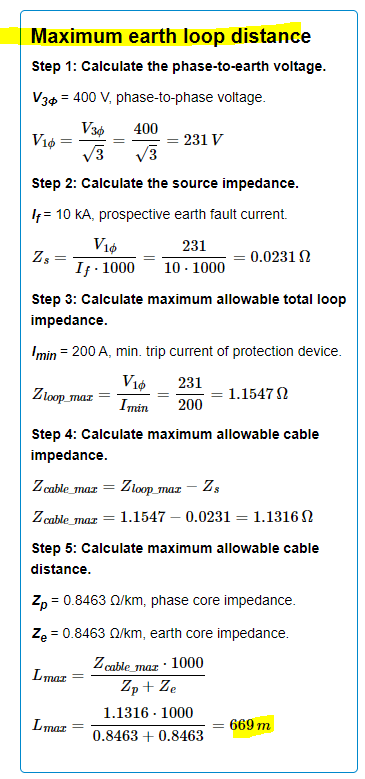

Improved step-by-step calculations for maximum earth loop distance.
